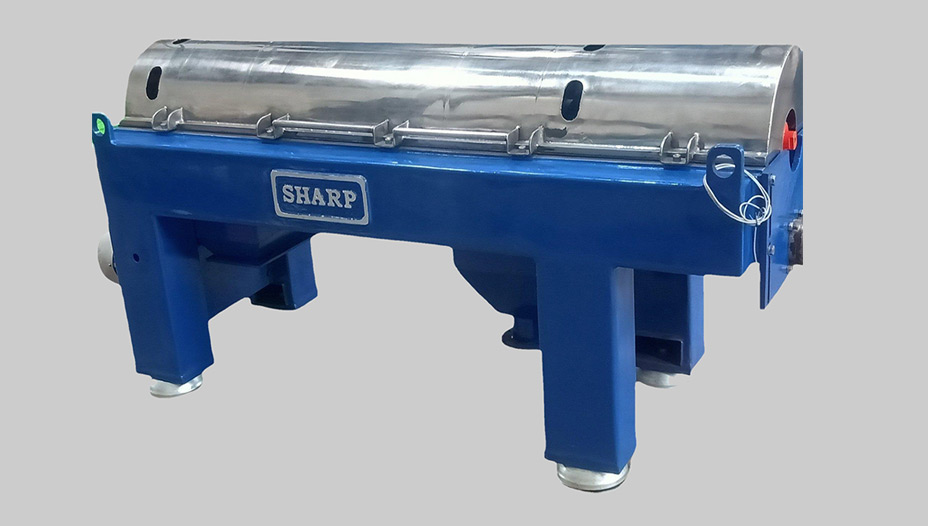

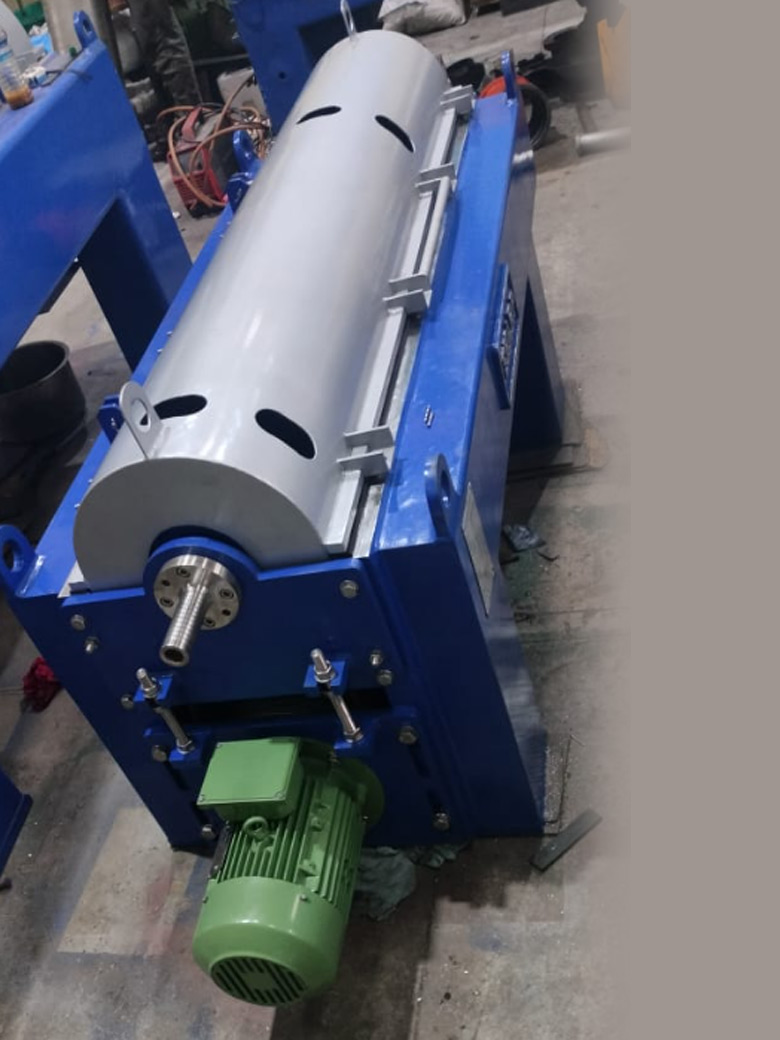

Decanter Centrifuge

Nearly every industry requires the separation of solids from liquids at some stage in their manufacturing processes. With over 10 years of expertise, Sharp excels at fulfilling this need through advanced decanter centrifuge technology. The decanter centrifuge operates on a straightforward principle similar to that of a settling tank, where particles, sediment, and solids naturally sink to the bottom under the influence of gravity.

A decanter centrifuge separates solids from one or two liquid phases in a continuous process by leveraging centrifugal forces that can exceed 3,000 times the force of gravity. Under these extreme forces, the denser solid particles are driven outward against the rotating bowl’s wall, while the less dense liquid forms a concentric inner layer. The depth of the liquid can be adjusted using different dam plates to meet specific requirements.

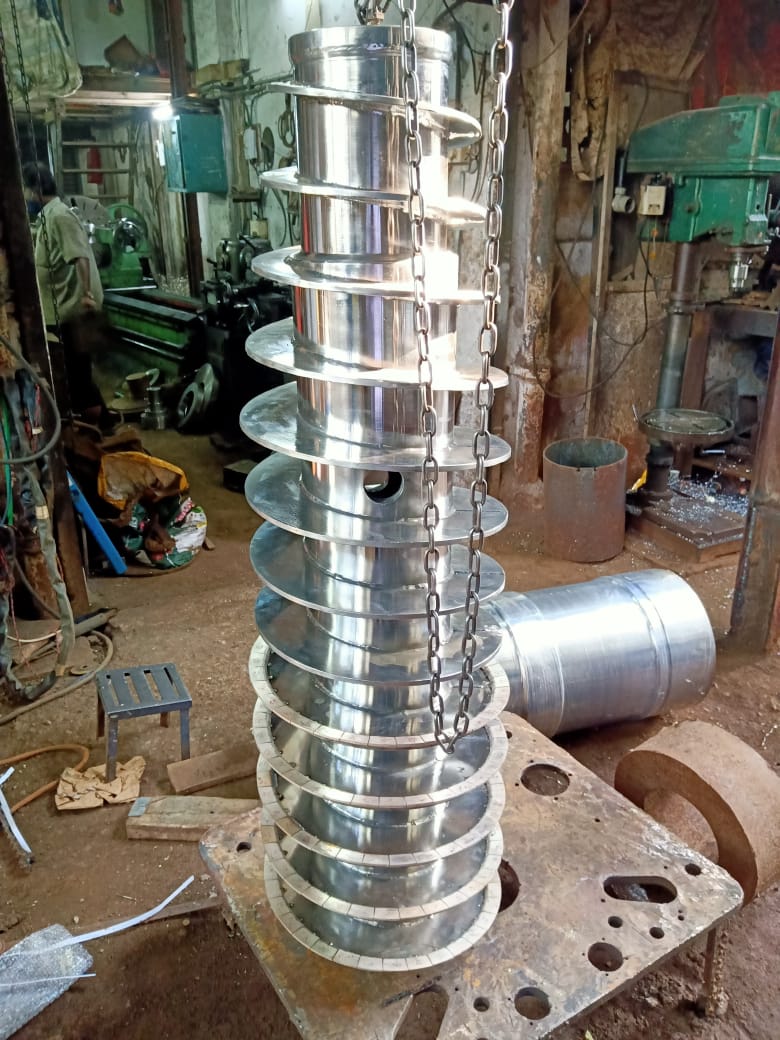

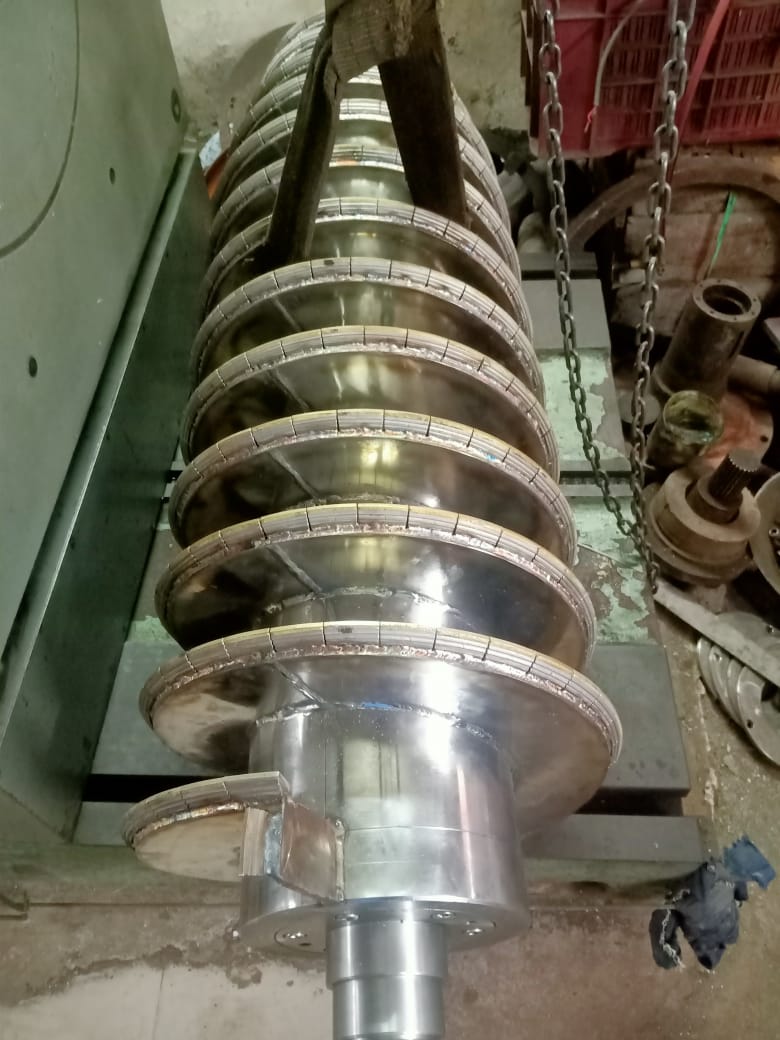

The solid sediment is continuously removed by a screw conveyor, which rotates at a different speed than the bowl, gradually pushing the solids out of the pond and up the conical beach. The centrifugal force compacts the solids, expelling any excess liquid. The dried solids are then discharged from the bowl, while the clarified liquid phase overflows the dam plates at the opposite end of the bowl.

Sharp utilizes high-grade stainless steel for all components that come into contact with the process, effectively eliminating the risk of corrosion that is commonly associated with carbon steel.

Sharp ensures that all parts in contact with the process are made from high-grade stainless steel, effectively eliminating the risk of corrosion that can occur with carbon steel. This choice of material not only enhances durability but also ensures longevity and reliability in demanding environments.

Key features of Sharp’s products include minimum maintenance requirements, dimensional accuracy, and a longer working life, making them ideal for a wide range of chemical and food processing industries. The robust construction and durability of these products ensure excellent performance, even under challenging conditions.

Features & Applications:

• Minimum Maintenance
• Dimensionally Accurate
• Longer Working Life
• Robust Construction
• Durable
• Excellent Performance

Technical Specifications

Model	SD-100	SD-200	SD-300	SD-400	SD-500	SD-600
Length (L)	1800 mm	1800 mm	3000 mm	3200 mm	3750 mm	4050 mm
Width (W)	500 mm	550 mm	900 mm	990 mm	1100 mm	1260 mm
Height (H)	1000 mm	900 mm	1300 mm	1100 mm	800 mm	800 mm
Weight	675 Kg	863 Kg	1860 Kg	2400 Kg	2900 Kg	3600 Kg
Main Drive Motor	7.5 - 10 HP	12.5 - 15 HP	20 - 25 HP	30 - 40 HP	60 HP	75 HP
Starter / Panel	VFD*	VFD*	VFD*	VFD*	VFD*	VFD*

Parameters

Model	SD-100	SD-200	SD-300	SD-400	SD-500	SD-600
Bowl Diameter (ID)	230 mm	280 mm	355 mm	450 mm	550 mm	750 mm
Bowl Length	1060 mm	1060 mm	1512 mm	2100 mm	2460 mm	2710 mm
Bowl Speed	5000 RPM	4600 RPM	4000 RPM	3150 RPM	2300 RPM	1500 RPM
G Force	3150 G	3150 G	3150 G	2400 G	1616 G	1000 G
Gearbox Ratio	1:159.5	1:100	1:57	1:50	1:137	1:137
